Building an offline-first survey app for HS2 condition surveys

A trusted name in property and construction consultancy

Watts Group is a property and construction consultancy with a long record in building surveys, project management and technical due diligence. On HS2, the UK's largest infrastructure project, its surveyors carry out detailed pre-condition surveys: documenting the state of each building along the route before construction begins, so that any later change can be measured against a clear, dated record.

The problem: a field tool that cannot rely on a connection

Watts had a first-generation survey app that proved the idea but ran into the realities of the work. A surveyor spends the day inside and around buildings, frequently with no mobile signal, sometimes across several days before returning to the office. The tool has to keep working with nothing to connect to, hold a large volume of structured notes and high-resolution photographs safely on the device, and turn all of it into the formatted report the client actually receives.

Watts wanted three things in particular from the next version:

• Evidence that stands up: each photograph carrying the time it was taken, its location, and the direction the surveyor was facing.
• Accuracy on the ground: precise geolocation tied to each property and each observation.
• Less time at a desk: the report compiled by the app rather than assembled by hand afterwards.

Why Watts chose Si Novi

Watts needed a partner who could move quickly and take on the hard parts of an offline field tool directly, rather than route the problem through the layers of a larger supplier. Si Novi worked alongside Watts' surveyors and built around how the survey is actually carried out on site, rather than how it looks on paper.

The solution: a local-first app that does its heavy lifting on the device

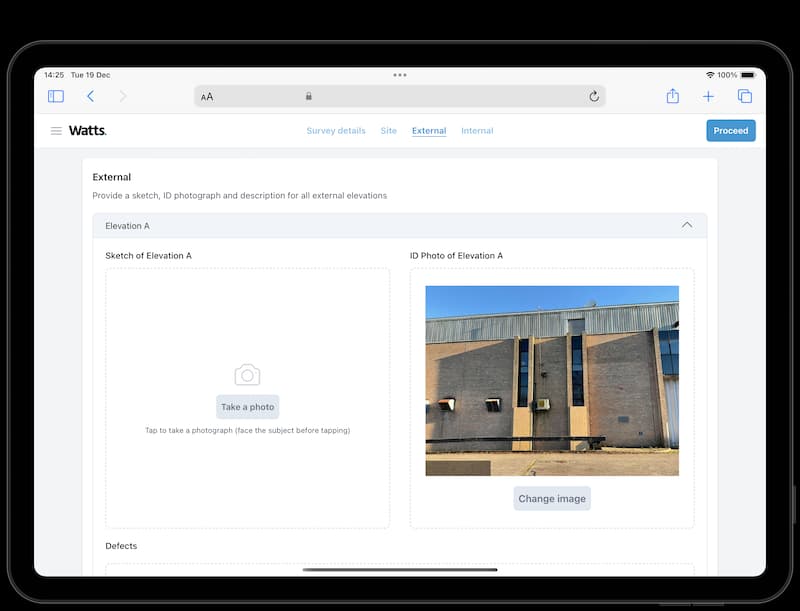

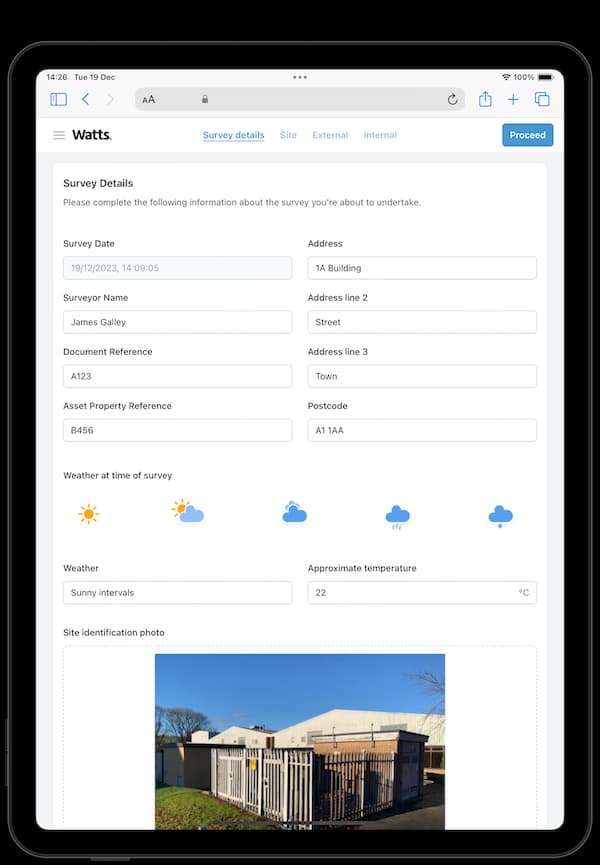

Si Novi built the app as an offline-first Progressive Web App, installed to the home screen on each surveyor's iPad. The decision at the centre of the design is that survey data never leaves the device until the surveyor chooses to export it. There is no live upload and no server-side survey database, which means none of the conflict, retry and partial-upload problems that come with trying to synchronise from a place with no signal. The deliverable is produced on the iPad itself.

Working with nothing to connect to

A service worker precaches the whole application, including the survey screens, so it loads and runs with the network switched off. The app asks the browser for persistent storage so a multi-day survey is not evicted under storage pressure, and it checks up front that the device has the camera, GPS, compass and storage it needs before a surveyor can begin. Every survey and every photograph is written to the device's own database as it is captured.

Photographs that carry their own evidence

When a surveyor takes a photo, the app processes it there and then. It reads the image's metadata, produces two versions - a compressed one for the report and a full-resolution one for the archive - and burns a watermark onto each showing the date and time, the latitude and longitude, and the compass heading the surveyor was facing. It then writes the GPS data back into the exported image, so the geotag survives being re-encoded. Getting this right on an iPad took real care with Safari's behaviour: the camera only opens within a brief window after a tap, so the location has to be captured without blocking it.

The finished report, generated on the iPad

When a survey is complete, the app builds the deliverable itself. It patches a Word template, walking the full structure of the survey - site defects, external elevations, and floor by floor down to individual rooms and their defects - and places each photograph in position, sized to its orientation, with its location printed underneath. Alongside the document it produces a ZIP of every full-resolution image. For the largest surveys, which can run to hundreds of photographs, that archive is streamed straight into the device's private file storage a piece at a time, so a memory-limited tablet never has to hold the whole thing in memory at once. Loading the images and assembling the archive both run off the main thread, so the interface stays responsive while it works.

A deliberately small backend

The application is hosted on AWS using a serverless stack, but its job there is intentionally narrow: serve the app shell, handle single sign-on, and keep the offline version up to date. In practice the work that matters to a surveyor happens on the device, with or without a signal.

The result

Watts' surveyors work the same way whether they have a signal or not, and every photograph in a report carries the time, place and heading it was taken at. The report that used to be compiled by hand comes out of the app already formatted, which is where most of the manual reporting the team used to do has gone.
